2AR-FE MAF pipe

from 173.00

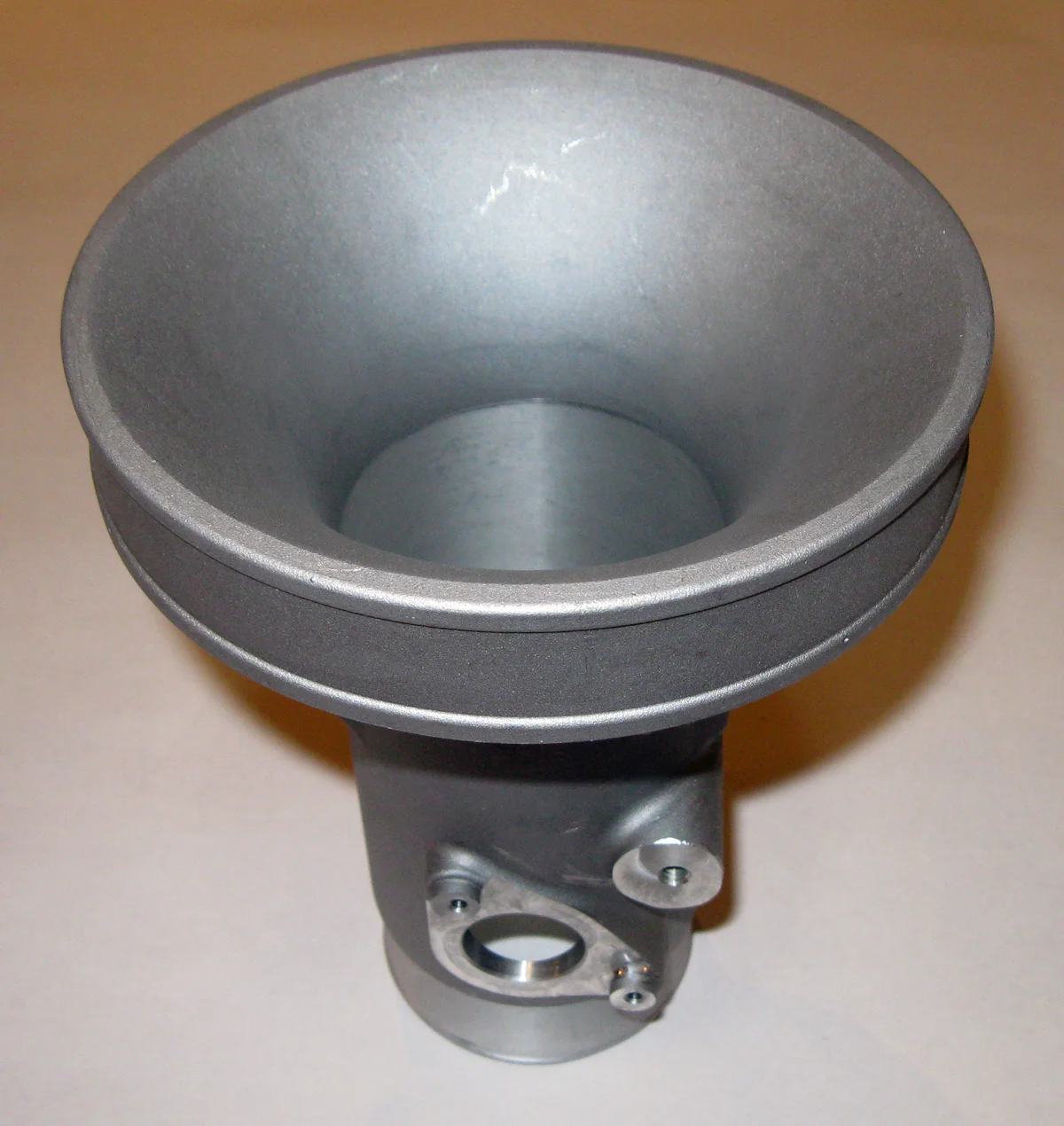

2AR-FE MAF pipe

from 173.00

This part is required for the 2AR-FE swap ECU sold here, it ensures consistent MAF readings which simplifies the 2AR-FE engine swap.

The optional bracket bolts the MAF pipe to the top of the left motor mount bracket and can be attached to the motor with the camry intake pipe part number: 17880-0V080

The optional filter is an AEM 21-209EDK that is relatively compact and works well but any 6” filter should fit.

  • Note that this MAF pipe needs a special calibration, the pipe flows between 20 and 35% more air depending on the location on the map. running this on a stock calibration will result in a very lean condition. This calibration is available on the store with the de-immobilized ECUs. Contact me at Marc@FrankensteinMotorworks.com if you need this calibration on a different ECU. I might be able to help depending on the application.

  • It is strongly recommended to run the 22204-0H010 MAF sensor with this pipe. This is what the 2AE-FE tune i make is designed to run.

Filter Option:
Bracket Option:
Quantity:
Add To Cart

This part is required for the 2AR-FE swap ECU sold here, it ensures consistent MAF readings which simplifies the 2AR-FE engine swap.

The optional bracket bolts the MAF pipe to the top of the left motor mount bracket and can be attached to the motor with the camry intake pipe part number: 17880-0V080

The optional filter is an AEM 21-209EDK that is relatively compact and works well but any 6” filter should fit.

  • Note that this MAF pipe needs a special calibration, the pipe flows between 20 and 35% more air depending on the location on the map. running this on a stock calibration will result in a very lean condition. This calibration is available on the store with the de-immobilized ECUs. Contact me at Marc@FrankensteinMotorworks.com if you need this calibration on a different ECU. I might be able to help depending on the application.

  • It is strongly recommended to run the 22204-0H010 MAF sensor with this pipe. This is what the 2AE-FE tune i make is designed to run.
